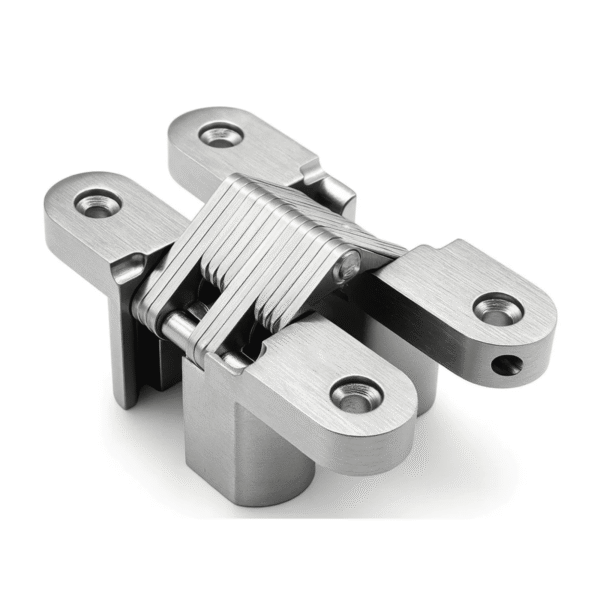

Soss Cabinet Invisible/Hidden Hinge – Heavy Duty Concealed Mortice Door Hinge (Satin Chrome):

Product Overview:

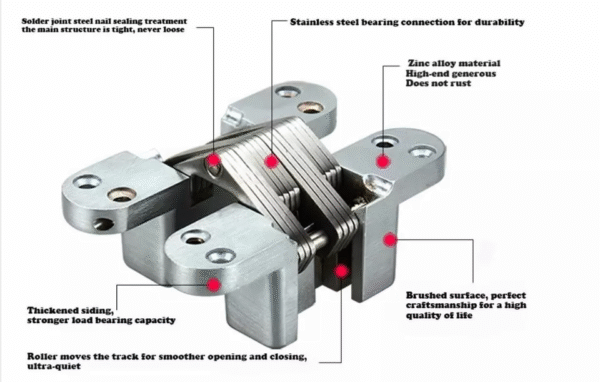

Enhance the security and aesthetics of your doors, windows, and cabinets with our Soss cabinet invisible/hidden hinge. This heavy duty concealed mortice door hinge is crafted with a zinc alloy main part and stainless steel connectors, offering superior strength and durability. The satin chrome finish provides a sleek, modern look, making it perfect for any residential or commercial setting.

Our concealed door hinge allows for a full 180-degree opening angle, providing smooth and unobstructed movement. Available in various models, these hinges are designed to fit a range of door thicknesses and weights. With easy installation and reliable performance, our invisible door hinges are the ideal choice for creating a clean and elegant appearance in your space.

Comparable to other high-quality cabinet hinges, these concealed mortice hinges are perfect for use in heavy duty applications such as doors, as well as in cabinets where a concealed hinge solution is desired. Choose from our various models to find the perfect fit for your needs.

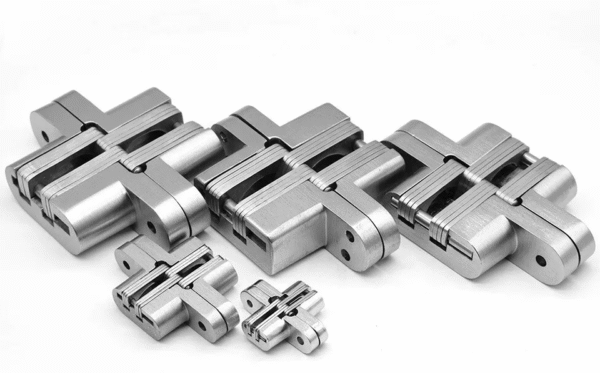

Choose from the following models:

• ZDF-01: 13x45mm, Door Thickness: 20mm, Max Door Weight: 5kg
• ZDF-02: 13x60mm, Door Thickness: 20mm, Max Door Weight: 10kg
• ZDF-03: 16x70mm, Door Thickness: 25mm, Max Door Weight: 15kg
• ZDF-04: 19x95mm, Door Thickness: 30mm, Max Door Weight: 25kg
• ZDF-05: 25x118mm, Door Thickness: 35mm, Max Door Weight: 30kg
• ZDF-06: 28x118mm, Door Thickness: 40mm, Max Door Weight: 40kg
• ZDF-07: 34x140mm, Door Thickness: 50mm, Max Door Weight: 50kg

Highlights

• High-quality zinc alloy main part with stainless steel connectors
• Satin chrome finish for a modern look
• 180-degree opening angle
• Various sizes available to suit different door thicknesses and weights
• Comparable to other high-quality cabinet hinges for concealed mortice applications
• Easy to install and operate
• Ideal for both residential and commercial applications
